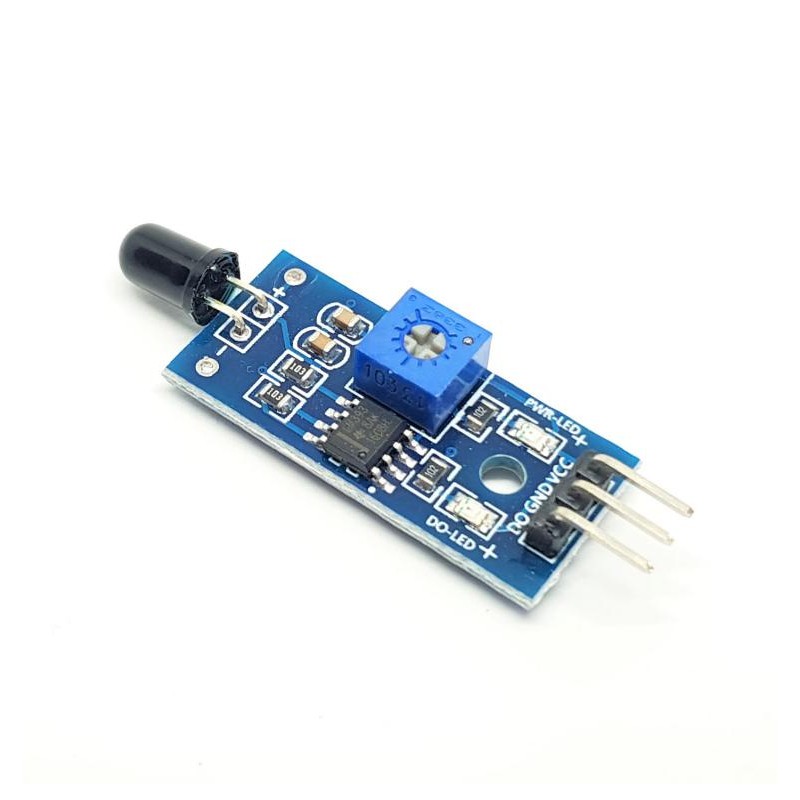

Flame Detection Sensor IR Infrared Receiver Control Module 760nm-1100nm 3.3 -5V

€1.98
Tax included *
Quantity

  • 100% confiance. Vos achats et données sont totalement sécurisés. 100% confiance. Vos achats et données sont totalement sécurisés.
  • Envoi le jour même si commande validé avant 11h30. Envoi le jour même si commande validé avant 11h30.
  • Politique retours 14 jours. Politique retours 14 jours.

1. It can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test
2. the detection angle of 60 degrees, the flame spectrum particularly sensitive
3. sensitivity adjustable (shown in blue digital potentiometer adjustment)
4. the comparator output signal clean waveform is good, driving ability, than 15mA
5. with a precision potentiometer adjustable sensitivity adjustment
6. Operating Voltage 3.3V-5V
7. the output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output
8. a fixed bolt holes for easy installation
9. PCB size: 3.2cmx1.4cm
10. using a wide voltage LM393 comparator
