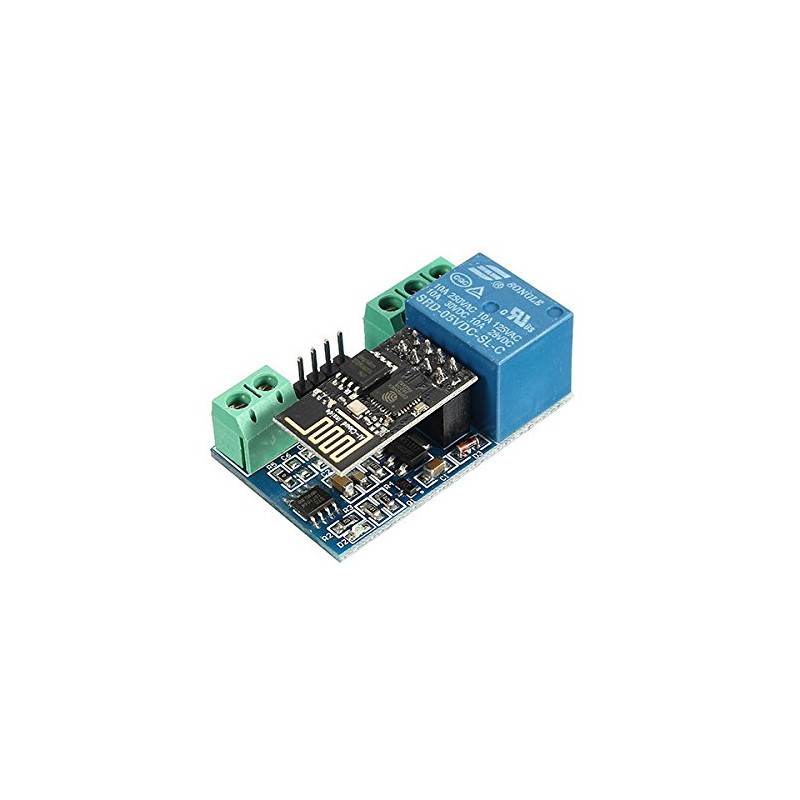

ESP8266 5V WiFi Relay Module Things Smart Home Remote Control Switch Phone APP

€5.49
Tax included *
26 items
Quantity



100% confiance. Vos achats et données sont totalement sécurisés.



Envoi le jour même si commande validé avant 11h30.



Politique retours 14 jours.

Product parameters:
Product size: 45 * 28mm
Operating voltage: DC5V
Communication: WIFI (ESP8266 module)
Serial communication parameters: 9600,8,1,0,0
Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times

Way of working:
Mobile phone equipped with WiFi module;
Mobile phone and WiFI module equipped with the same router, through the mobile phone APP to control the relay; this mode, the transmission distance depends on the signal router.


Tips:
ESP8266 module has a timeout mechanism, when the phone for some time (the default 180S) did not give instructions to the module, the module will kick off the phone, the computer can send AT + CIPSTO = <time> to modify this time (Time range 0-7200), such as: AT + CIPSTO = 3600.
When the module on the WIFI module is unplugged, USB to TTL module RX, TX, GND pins were connected to the module RX, TX, GND pin, IN +, IN- 5V power supply, then the module can be used as a USB Relays to use, scalability.

1358Z
26 Items

Data sheet

Tension de fonctionnement
5 v
L x l x h
45x28x18 mm
