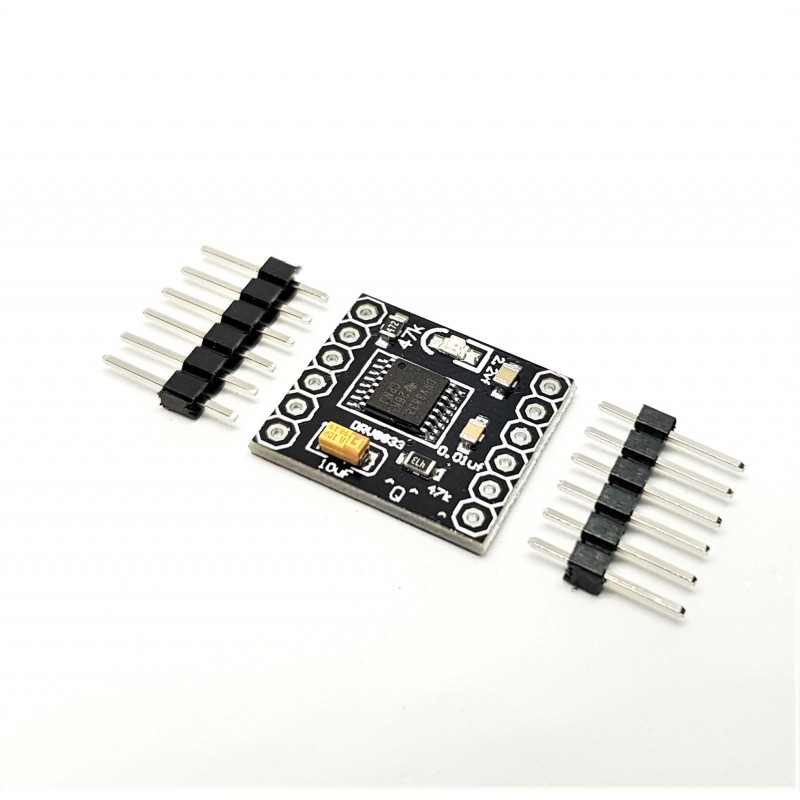

DRV8833 2 Canales DC Motor Driver Module 1.5A 3 V-10 V H-bridge

Tax included *
7 items



100% confiance. Vos achats et données sont totalement sécurisés.


Envoi le jour même si commande validé avant 11h30.

Delivery date

1. Size:18.5*16mm
2. Input voltage:3V-10V
3. Single H-Bridge output current:1.5A(It can drive two DC motor)
4. Overcurrent protection:YES
5. Short circuit protection:YES
6. Undervoltage lockout:YES
7. Overheating protection:YES
8. With a low-power sleep mode


1. ULT PIN:mode set.Low level is sleep mode
2. OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
3. OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4
4. EEP PIN:Output protection.Default no need to connect.
5. VCC:3-10V
6. GND


1. DC motor which drive current is less then 1.5A
2. 4-wire step motor
