• New

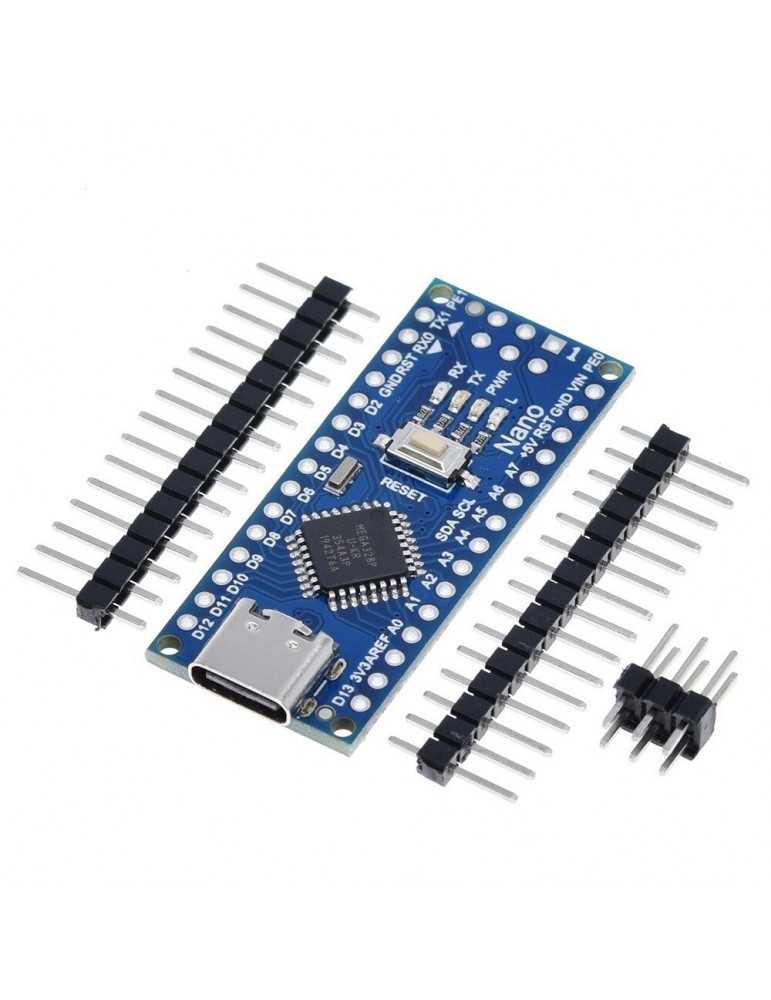

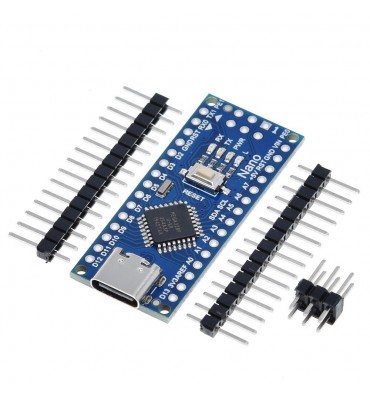

Nano USB Type-C card ATmega328P CH340

€7.99
Tax included *
10 items
Quantity





100% confiance. Vos achats et données sont totalement sécurisés.



Envoi le jour même si commande validé avant 11h30.

Delivery date

Nano development board, with USB Type-C converter CH340G

Nano R3 is ideal for your projects
Nano R3 has an on-board CH340 or CH341 component chip that allows communication with a USB cable.

Depending on your operating system, the CH340 chip often requires a driver that you will find in the "attached documents" tab as well as a tutorial in French for its installation.
This board is an "open-source" microcontrolled prototyping platform specially designed for artists, designers or hobbyists. This version is built around an ATmega328p microcontroller associated with a USB interface.
All the inputs / outputs of the board are available on female connectors present on the edges of the board.
Programmable via a language close to "C" (available for free download), this card can operate autonomously or by communicating with software "running" on a computer (Flash, MaxMSP, etc.).

driver: ch340
or
https://fichier.vs-elec.fr/v-elec/produits/1217/CH341SER.ZIP

installation instruction for driver: instruction
or
https://fichier.vs-elec.fr/v-elec/produits/1217/intruction%20installation%20ch340.pdf

1291Z
10 Items

Data sheet

Microcontrôleur
ATmega328P
Cristal
16 Mhz
Flash
32 ko
SRAM
2 ko
EEPROM
1 ko
Convertisseur USB-Série
CH340G
E / S Numérique
14
PMW
6
Entrées analogiques
8
Courant continu à broche
40 mA
Tension d'entrée
6-12V recommandé
5V courant max
800 mA
3.3V Courant max
180 mA
Weight
6 g
L x l x h
4.5 x 1.8 x 0.6 cm
