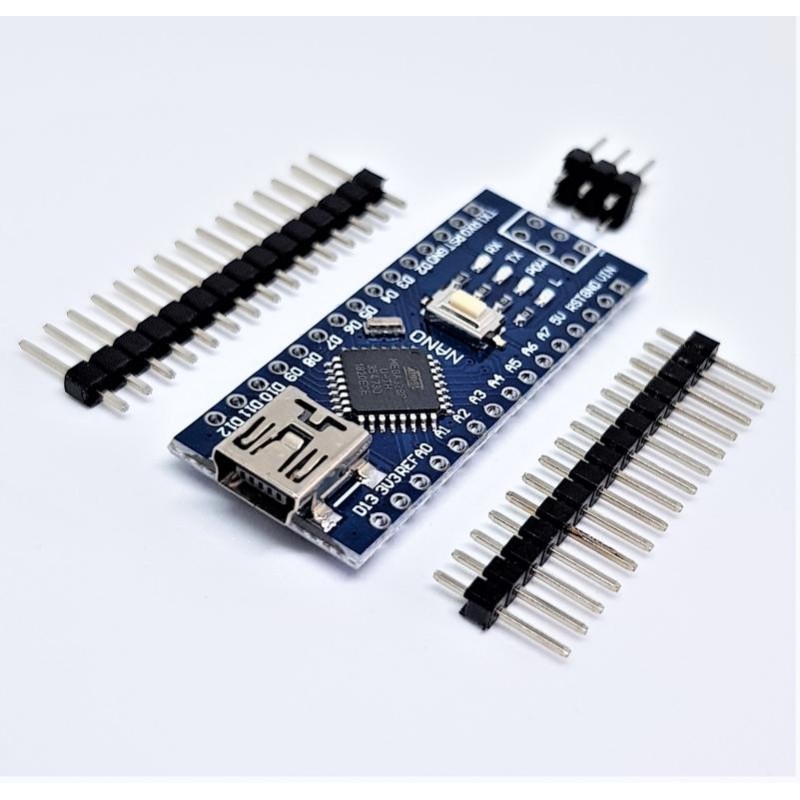

NANO V3.0 CH340 USB driver 16Mhz Atmega328

100% confiance. Vos achats et données sont totalement sécurisés.

Envoi le jour même si commande validé avant 11h30.
Nano development board, with CH340G USB converter and miniUSB.
Nano R3 is ideal for your projects
Nano R3 has a CH340 or CH341 on-board chip in place of the component Atmega16U2 chip which allows communication with a USB cable.
Depending on your operating system, the CH340 chip often requires a driver that you will find in the "attached documents" tab as well as a tutorial in French for its installation.
This board is an "open-source" microcontrolled prototyping platform specially designed for artists, designers or hobbyists. This version is built around an ATmega328p microcontroller associated with a USB interface.
All the inputs / outputs of the board are available on female connectors on the edges of the board.
Programmable via a language close to "C" (available for free download), this card can operate autonomously or by communicating with software "running" on a computer (Flash, MaxMSP ...).
driver: ch340
or
https://fichier.vs-elec.fr/v-elec/produits/1217/CH341SER.ZIP
installation instruction for driver: instruction
or
https://fichier.vs-elec.fr/v-elec/produits/1217/intruction%20installation%20ch340.pdf
Data sheet
- Microcontrôleur
- ATmega328P
- Cristal
- 16 Mhz
- Flash
- 32 ko
- SRAM
- 2 ko
- EEPROM
- 1 ko
- Convertisseur USB-Série
- CH340G
- E / S Numérique
- 14
- PMW
- 6
- Entrées analogiques
- 8
- Courant continu à broche
- 40 mA
- Tension d'entrée
- 6-12V recommandé
- 5V courant max
- 800 mA
- 3.3V Courant max
- 180 mA
- Weight
- 6 g
- L x l x h
- 4.5 x 1.8 x 0.6 cm
Download
4 other products in the same category:


RobotDyn WIFI NodeM ESP8266, 32M flash, CH340G
La Marque RobotDyn, fabrique des produits de qualité supérieur avec un rapport qualité prix incomparable.

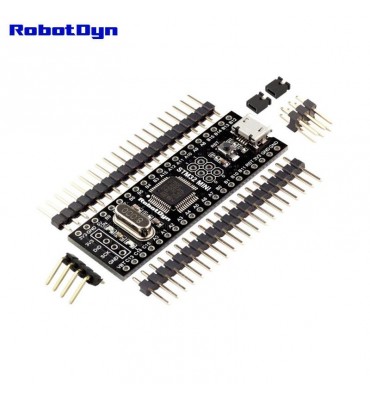

RobotDyn carte ARM STM32 STM32F103C8T6 (Not soldered)
