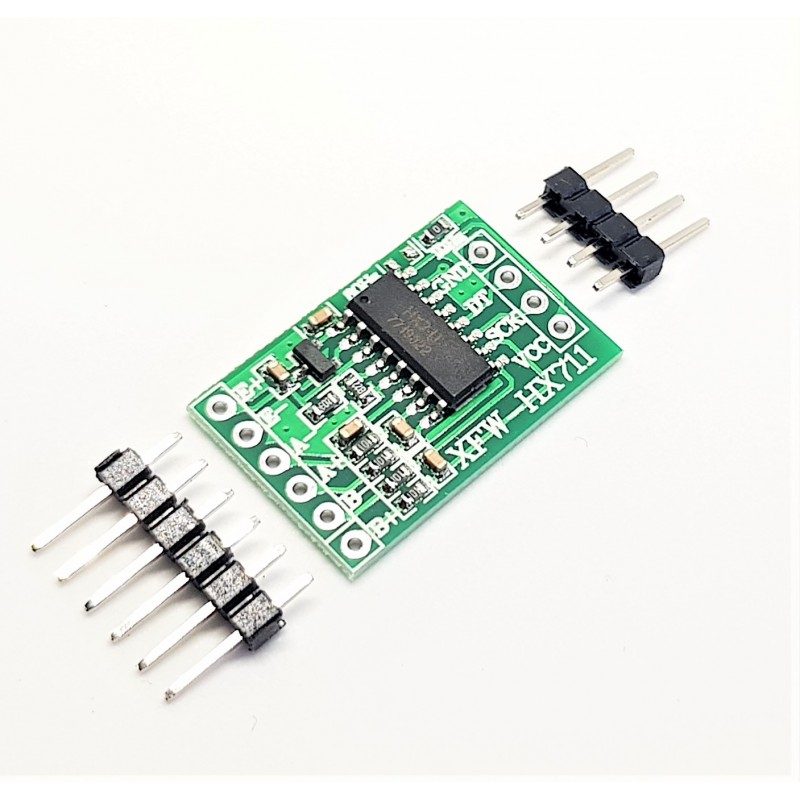

HX711 Module Weighing Sensor Dedicated AD Module For DIY

Tax included *
22 items


100% confiance. Vos achats et données sont totalement sécurisés.


Envoi le jour même si commande validé avant 11h30.


Politique retours 14 jours.

This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design, with two analog input channel, the internal integration of 128 times the programmable gain amplifier. Theinput circuit can be configured to provide a bridge type pressure bridge (such as pressure, weighing sensor mode), is of high precision, low cost is an ideal sampling front-end module.

*Two selectable differential input channels

*On-chip active low noise PGA with selectable gain of 32, 64 and 128

*On-chip power supply regulator for load-cell and ADC analog power supply

*On-chip oscillator requiring no external component with optional external crystal

*On-chip power-on-reset

*Simple digital control and serial interface: pin-driven controls, no programming needed

*Selectable 10SPS or 80SPS output data rate

*Simultaneous 50 and 60Hz supply rejection

*Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA

*Operation supply voltage range: 2.6 ~ 5.5V

*Operation temperature range: -40 ~ +85°

*This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module.
