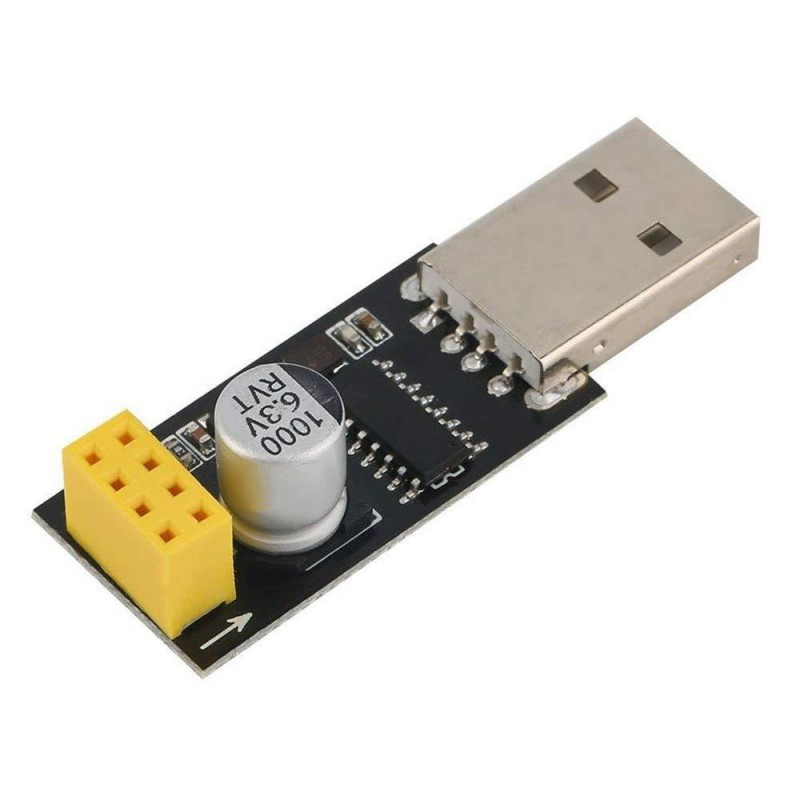

CH340 USB to ESP8266 ESP-01 Wifi Module Adapter

€2.99
Tax included *
Out of stock
Quantity
There are not enough products in stock



100% confiance. Vos achats et données sont totalement sécurisés.



Envoi le jour même si commande validé avant 11h30.



Politique retours 14 jours.

This moduel is an USB adpater /

programmer for ESP8266 moduels of type ESP-01.
It is conveniently fitted with a 2x4P
2.54mm female header to plug the ESP01
and configure or run it right away.
A large 1000μF cap will help getting a steady 5.0V VCC
from the USb bus and and jumper (on the right of the 2x4P header)
​(we don't offer any jumper !!!!)
will help configuring the GPIO0 line according needs.
The module is based on the USB-UART bridget CH340
from WCH which is compatible with all platforms.

Note : for an usage with Arduino ESP8266 platform and for Arduino IDE
it is necessary to switch manually the GPIO0 state for working mode,
in order to get a fully automatic upload it is most likely possible,
for a very limited effort, to assign an unused control line
from CH340 to driver the GPIO0 line
(probably at the cost of a necessary logic inversion),
refer to the CH340 datasheet and
most important to the NodeMCU V0.9
which use the CH340 and already implements this solution,
the schematic is open source and easily available.

1394Z
