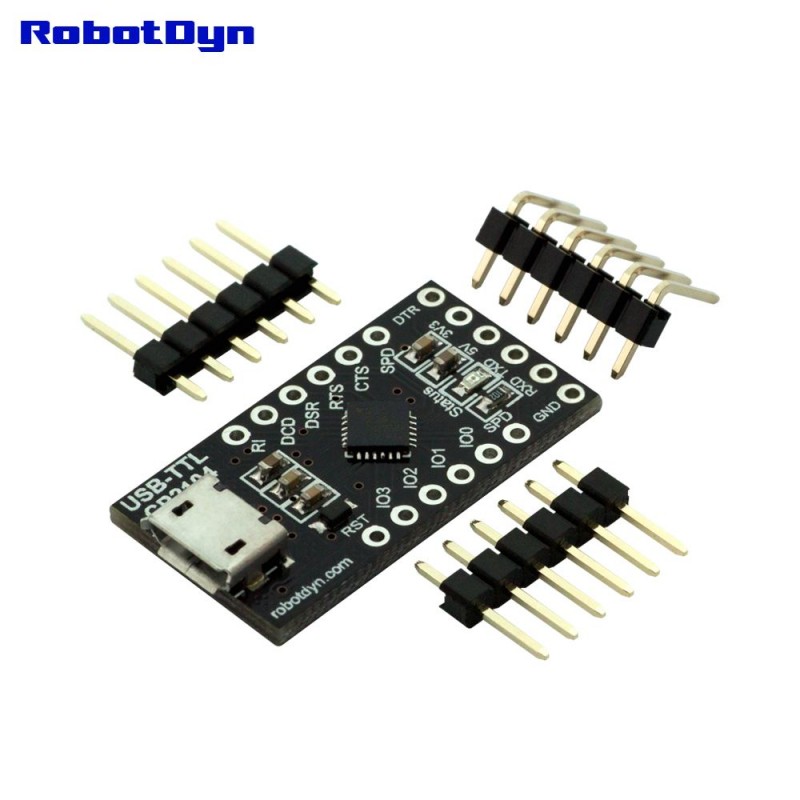

USB-Serial adapter/microcontroller CP2104, 5V/3.3V, digital I/O, Micro-USB

€4.99
Tax included *
Quantity

  • 100% confiance. Vos achats et données sont totalement sécurisés. 100% confiance. Vos achats et données sont totalement sécurisés.
  • Envoi le jour même si commande validé avant 11h30. Envoi le jour même si commande validé avant 11h30.
  • Politique retours 14 jours. Politique retours 14 jours.

This USB to UART Bridge is a module, base on Silicon Labs CP2104 UART bridge, and it is a good solution for connecting micro-controllers and other digital serial devices to PC.
For connecting to PC used micro-USB socket.
The device also features up to four GPIO signals that can be user-defined for status and control information. Direct access driver support is available through the Silicon Labs USBXpress driver set. See www.siliconlabs.com for the latest application notes and product support information for the CP2104.

This board uses 5V signal levels by default. For use 3.3V level, pls cut off the bridge for 5V of soldering pads on bottom side of board, and make soldering the pads for 3.3V
For get detail information of IC CP2104 USB-UART bridge, pls folow this link: http://www.silabs.com/products/interface/usb-bridges

USB-TTL Serial adapter CP2102
Power Out
  • 3.3V-180mA
  • 5V-180mA
Power IN. USB 5V
USB Micro USB
Ports 18
Operating temperature −40С°/+85С°
Length×Width 29×15.50mm
1499MCO
