DFPlayer Mini MP3 Player Module for Arduino

€3.99
Tax included *
Quantity
There are not enough products in stock

  • 100% confiance. Vos achats et données sont totalement sécurisés. 100% confiance. Vos achats et données sont totalement sécurisés.
  • Envoi le jour même si commande validé avant 11h30. Envoi le jour même si commande validé avant 11h30.
  • Politique retours 14 jours. Politique retours 14 jours.

SOLD WITHOUT MEMORY CARD

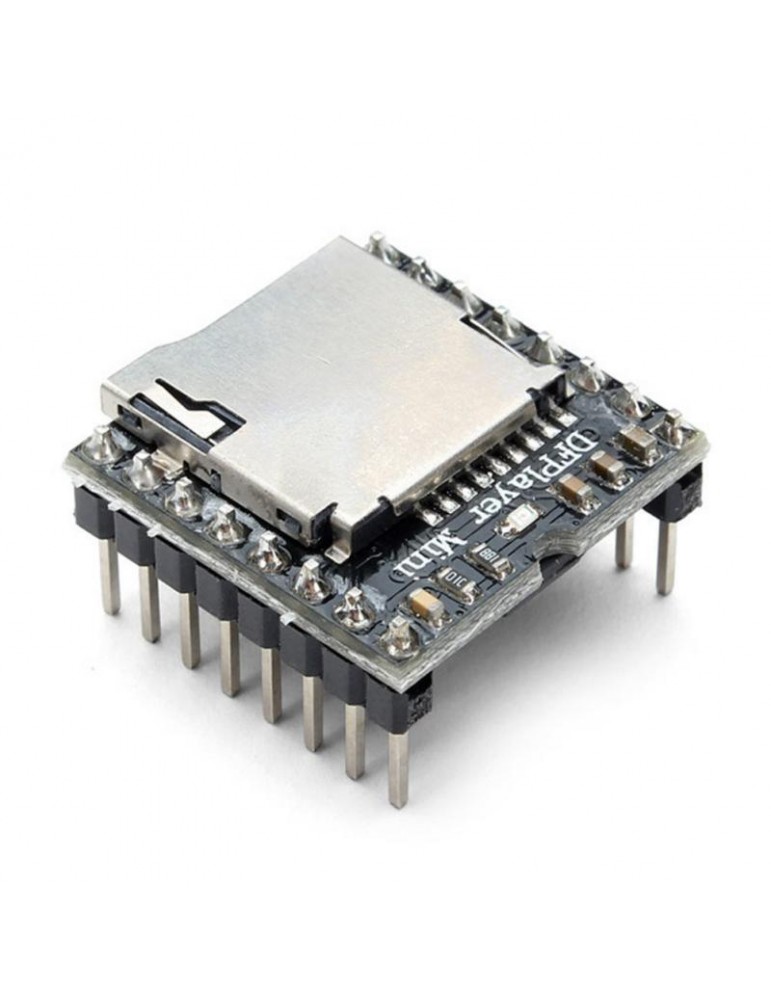

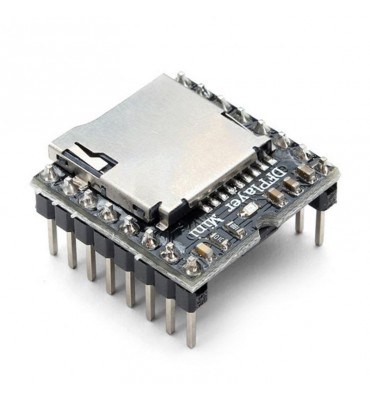

DFPlayer Mini MP3 audio module. Very interesting for generating sound from an onboard microSD card and an Arduino board
 a mp3 player based on a DSP and a 3W mono audio amp.

With Arduino the default cabling is as follows. Connect the Rx pin of the audio module to pin 11 of the Arduino board (software serial link to send commands such as playing an audio file stored on the micro SD card by giving the file number). Connect the Busy pin of the audio module to pin 12 of the Arduino board to possibly wait for the end of the current playback.

The mp3 files should be saved on the micro SD card in a folder at the root named "mp3".
The name of each mp3 file must start with a number:
0001 Example1.mp3
0002 Example2.mp3
No emphasis in the name of the files.

Link for the download of the library to install imperatively in the Arduino software:

DFPlayer library library V2.0.

https://github.com/Arduinolibrary/DFRobot_Mini_Player/raw/master/DFPlayer_Mini_mp3.zip
